Multi-camera CCTV
Multiple Ethernet connections and optional PoE for compact surveillance cabinets.
Five-port industrial 4G router

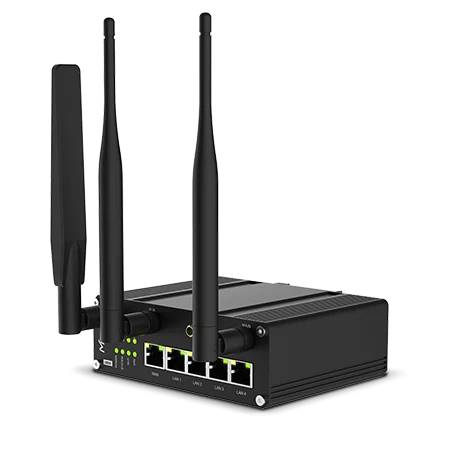

Milesight UR35 Industrial 4G Router
A rugged dual-SIM LTE router for CCTV, ANPR, parking and industrial networks that need more local Ethernet capacity. Select variants can power up to four PoE devices, simplifying cabinet and roadside installations.
- LTE Cat 4
- Dual SIM
- 5 Ethernet ports
- RS232 and RS485
- Optional 4-port PoE
More local ports for multi-device installations
The UR35 provides five 10/100 Mbps Ethernet ports, configured as one WAN plus four LAN or as five LAN ports. Separate RS232 and RS485 interfaces, isolated digital I/O and dual SIM make it better suited than the UR32 to cabinets serving several cameras, controllers or field devices.
- Dual Mini SIM slots for cellular carrier backup.
- Five Fast Ethernet ports for a larger local network.
- Separate RS232 and RS485 interfaces.
- One isolated digital input and one isolated digital output.
- DeviceHub, MilesightVPN, web, CLI, SNMP and TR069 management.
PoE and variant selection
The optional PoE version supports 802.3af/at output on four LAN ports, up to 30 W per port and 60 W total. PoE operation requires a suitable 48 V power supply. Wi-Fi and GNSS availability also depends on the selected order code, so Connected IoT confirms the complete configuration before quotation.
Choose the UR32 instead when two Ethernet ports are enough and enclosure space or cost is the priority. Choose the UR75 when the application needs 5G and Gigabit Ethernet.
Typical UK applications
ANPR and parking
Connect cameras, controllers and payment equipment with cellular failover.
Industrial control
RS232, RS485 and isolated I/O for legacy and modern field equipment.
