CCTV and ANPR
High-throughput cellular backhaul with Gigabit Ethernet and optional PoE for connected devices.
High-performance industrial 5G router

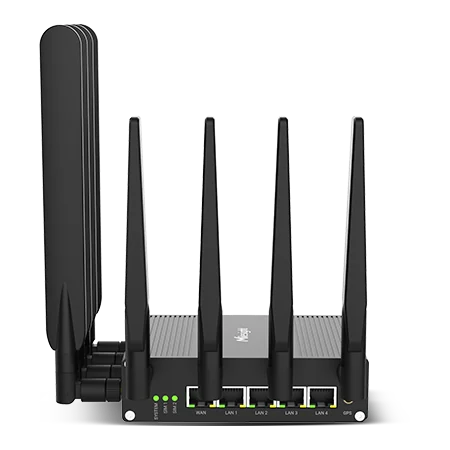

Milesight UR75 Industrial 5G Router
A dual-SIM 5G router for high-throughput CCTV, ANPR and industrial networks. Five Gigabit Ethernet ports, dual-band Wi-Fi 6, GNSS and rich industrial interfaces support demanding UK deployments, with four-port PoE available as an option.
- 5G SA and NSA
- Dual SIM
- 5 Gigabit ports
- Wi-Fi 6
- Optional 4-port PoE
5G performance with a full industrial interface set
The UR75 combines 5G NR SA and NSA connectivity with fallback to 4G LTE and WCDMA. It has five Gigabit Ethernet ports, configured as one WAN plus four LAN, alongside separate RS232 and RS485 ports, isolated digital I/O and dual Mini SIM slots.
- Quad-core ARM Cortex-A55 processor with 1 GB RAM and 1 GB NAND flash.
- Dual-band 2 × 2 Wi-Fi 6 in access-point or client mode.
- GNSS supports GPS, GLONASS, BeiDou, Galileo and QZSS.
- USB 3.0 Type-C supports power, network access and debugging.
- DeviceHub, MilesightVPN, web and SMS management, plus Node-RED development.
Optional PoE and storage expansion
Four-port 802.3af/at PoE PSE is available on the appropriate UR75 variant; it is not standard on every unit. The router also provides one M.2 NVMe SSD interface for storage expansion, but the datasheet does not state that an SSD is included. Connected IoT confirms the cellular, PoE and storage requirements before quotation.
Choose the UR35 instead when LTE Cat 4 and Fast Ethernet meet the requirement. Choose the UF51 when the installation needs an outdoor IP67 5G CPE with PoE input rather than PoE output.
Typical UK applications
Industrial networks
RS232, RS485, digital I/O and GNSS alongside resilient cellular connectivity.
Remote multi-device sites
Five local Ethernet ports, dual SIM and centralised management for unattended installations.
